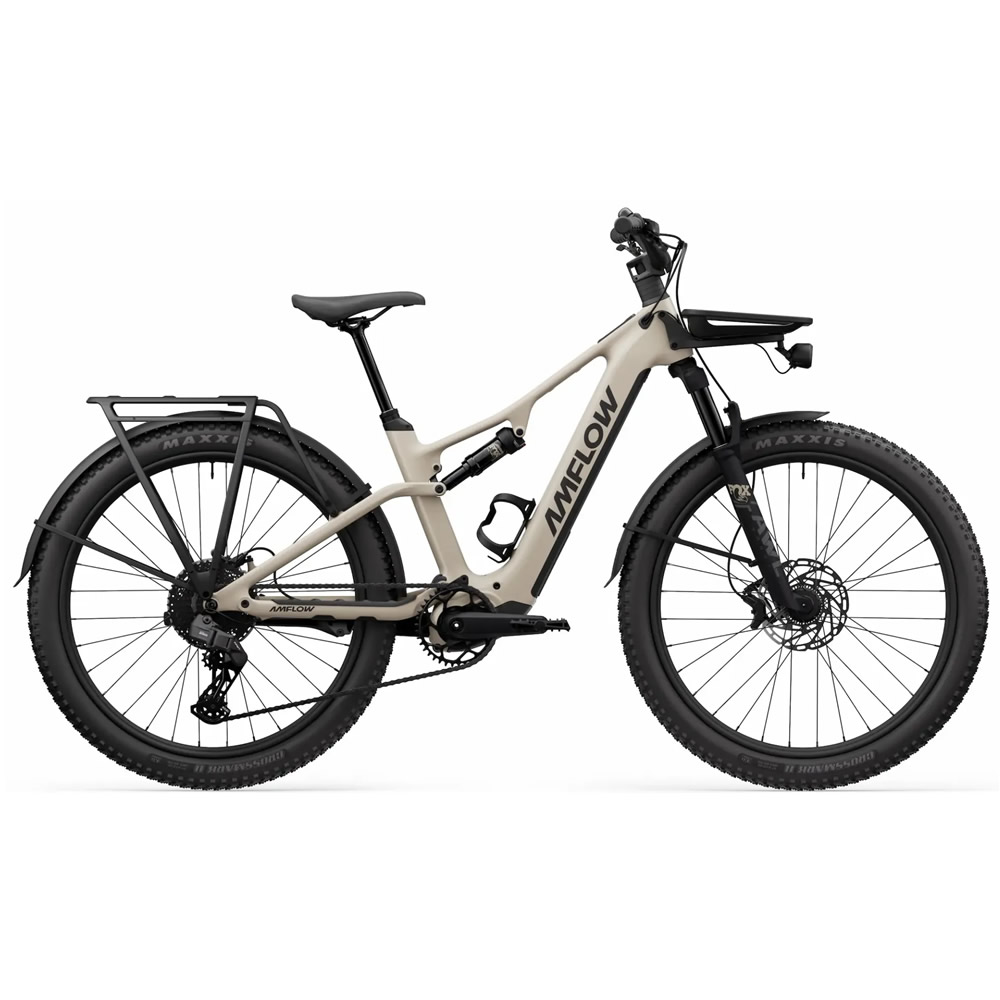

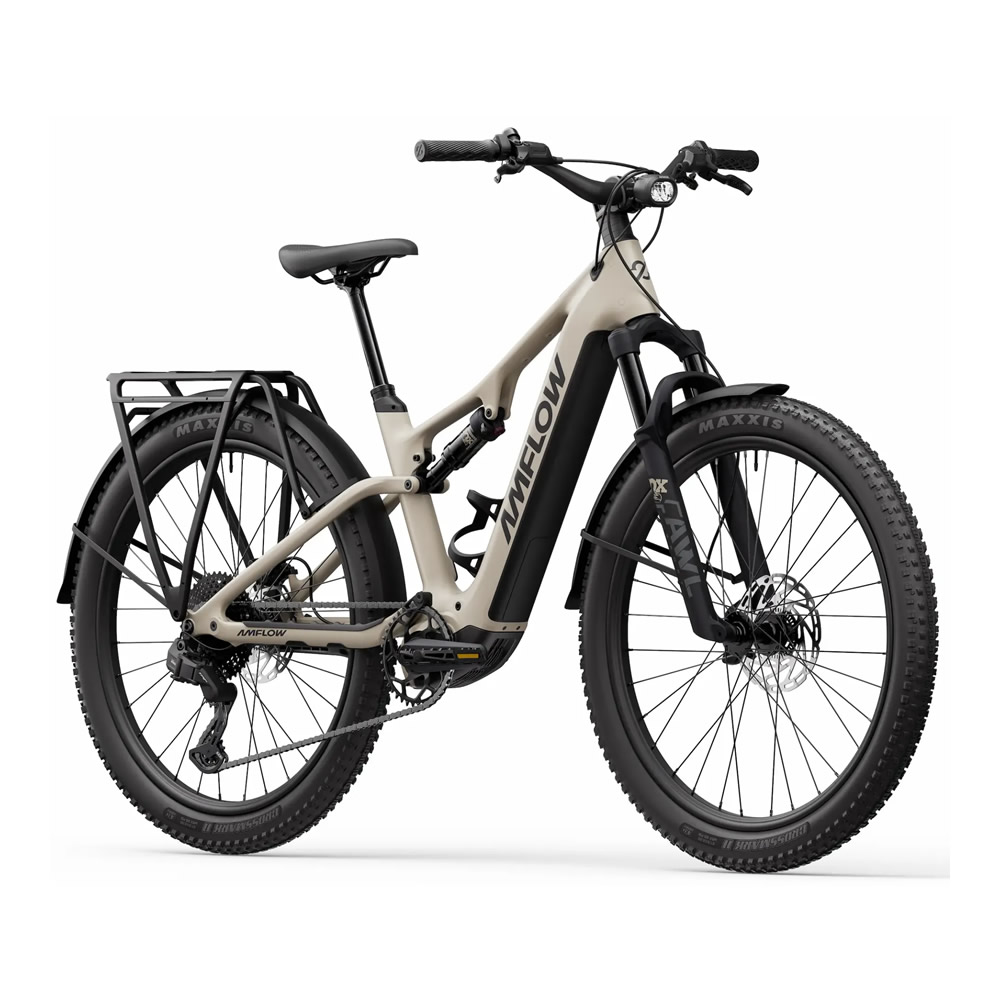

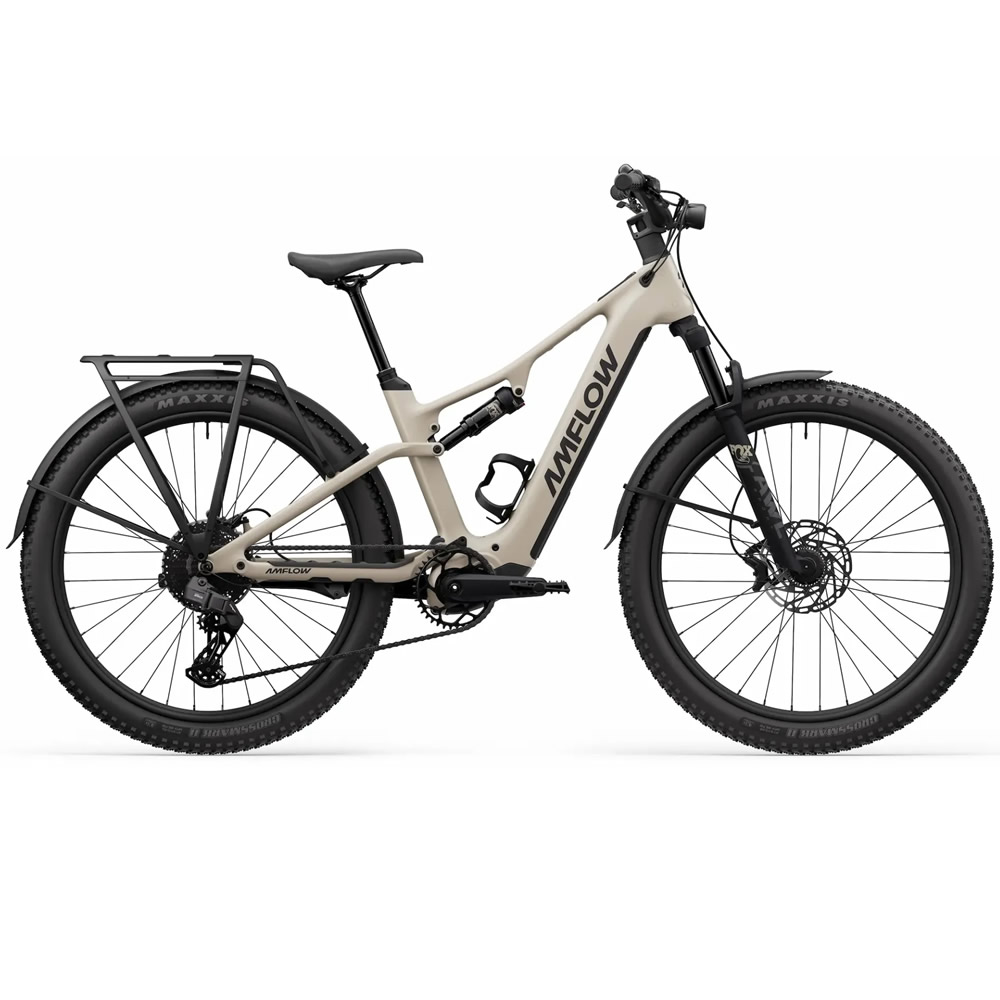

Amflow TL Carbon
$3,899.00
An SUV e-bike built for multiple scenarios, Amflow TL Carbon electric bike provides agility on trails, smoothness in the city, and stability to loaded touring.
A 6.4lb full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 49.8 lbs and supports a 440lb total weight for loaded touring or commuting.
Available in Small\Medium (41.28cm) or Large/Extra-Large (44.56cm).
Coming soon to Electric Cyclery.
The Amflow TL Carbon is a high performance SUV e‑bike with all‑terrain capabilities, built on an advanced carbon frame and specifically engineered for maximum efficiency, range and versatility. The ultra‑light carbon fiber frame (approx. 2.9 kg) combines high stiffness with low weight and meets demanding load and durability standards for real‑world riding conditions.

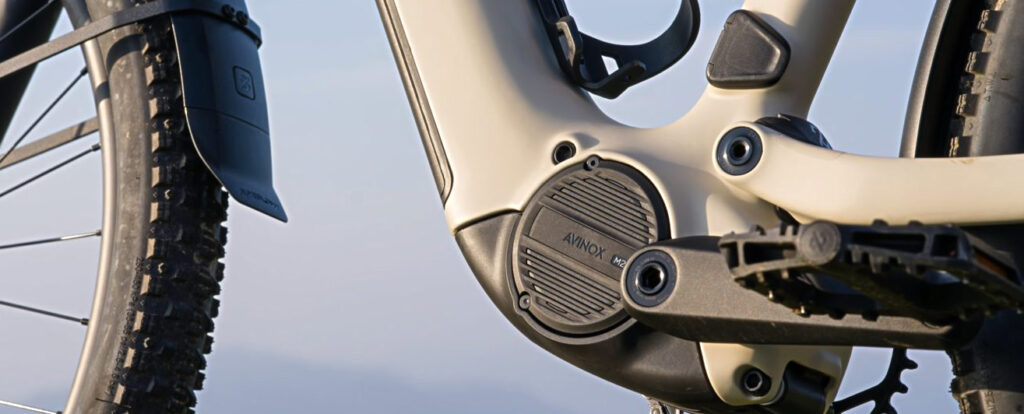

At its core is the Avinox M2 drive unit, delivering peak output of up to 1100 W and a 125 Nm. maximum torque. The modular energy system includes a removable high‑performance battery (800 Wh) with an optional range extender, enabling ranges of up to 270 km.
And the Amflow TL Carbon weighs less than 50 lbs and can carry up to 440 lbs.
The Avinox motor system is controlled by two small wireless remotes, and a touchscreen display integrated into the top tube.
This includes a 4G LTE interface, which allows you to track your rides even without carrying a smartphone in your pocket.
There’s also a dedicated app that allows you to adjust the motor’s characteristics, as well as offering a range of riding statistics and safety features.
Dual wireless Bluetooth controllers next to each grip, let you easily cycle through support & display mode, while also putting Boost mode at your fingertips. Tap that Boost button and get ready for 60 seconds of unbelievable torque and power.
Electric Cyclery provides full service for Amflow bikes and stock a wide range of Amflow Avinox Parts.
Amflow TL Carbon Pro Specifications
| Size | Large/XLarge, Small/Medium |
|---|---|
| Color | Silica Beige |
| Weight | 49 lbs |
| Battery | Avinox RS800 Battery (Removable) |
| Motor | Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m |
| Frame | Amflow TL Carbon Frame |
| Forks | FOX 36 Float 29" Factory eBike 160mm 15×110 |
| Rear Shock | FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset |
| Derailleur | TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur |
| Chainring(s) | Avinox Direct Mount Chainring (38T) |
| Shifter | TRP E.A.S.I. RD-T7010E |
| Crankset | Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
| Brakes | Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow |
| Rim size | Alloy, 27.5″, 25mm Inner Width, 32H |
| Tires | Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI |
| Handlebar | Amflow Touring Handlebar |
| Saddle | Amflow Touring Saddle |
| Manufacturer | Amflow |
